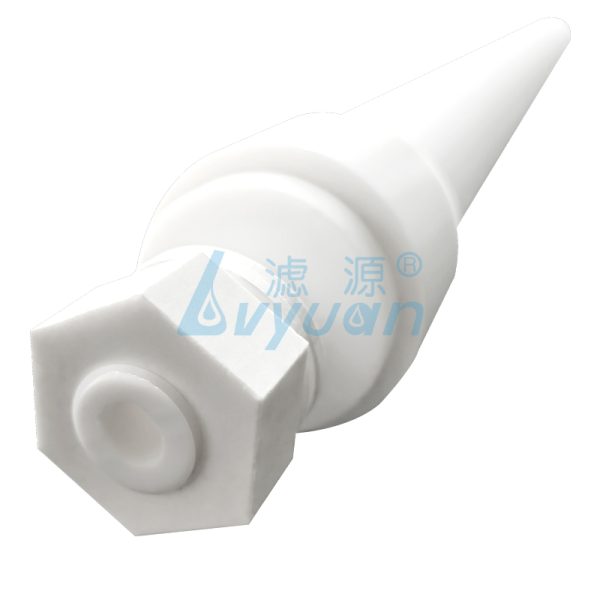

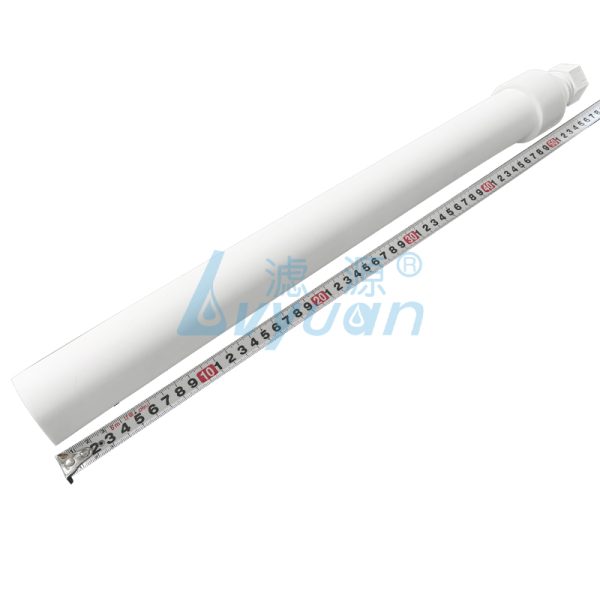

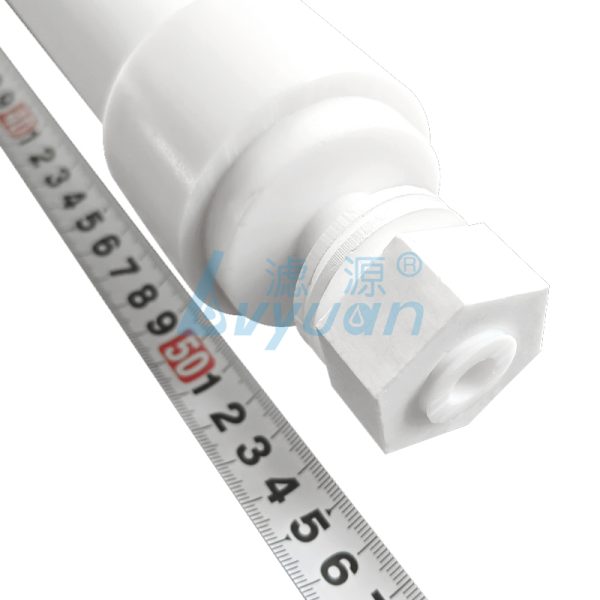

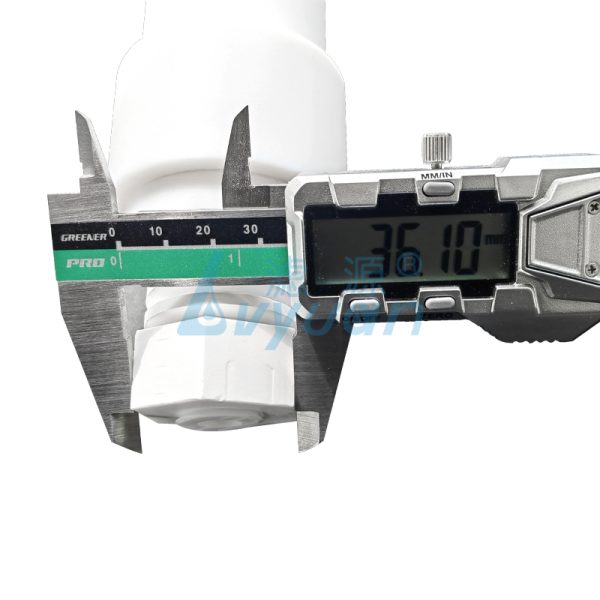

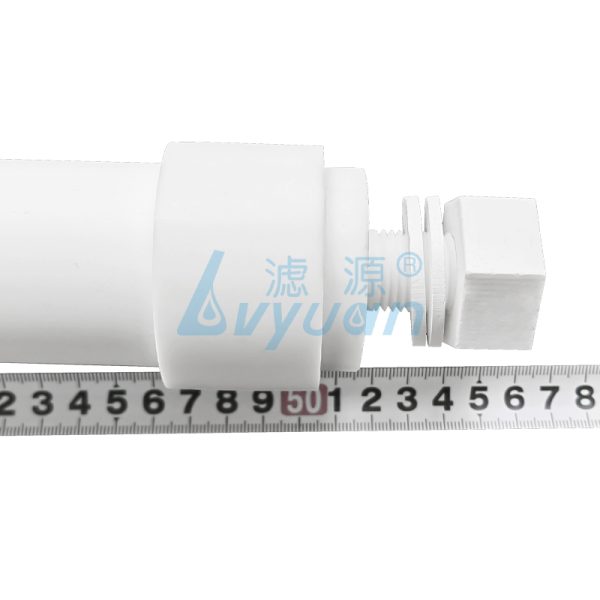

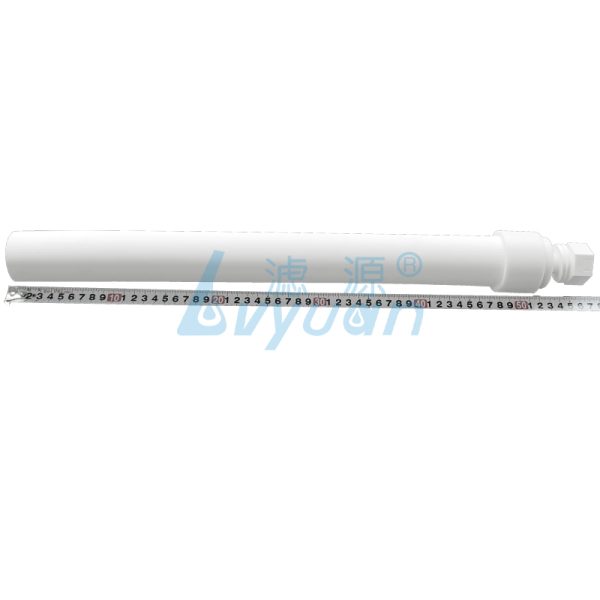

Sintered PTFE Porous Filter Cartridge Element

Lvyuan sintered PTFE porous filter cartridge designed for particulate filtration in gas and liquid service. Available with multiple micron ratings, lengths and connection configurations for customized industrial filtration projects.

Richiesta di informazioni
Condividi il tuo amore
Categoria: Tag: , ,

Lvyuan filter element is manufactured from sintered porous PTFE, forming a rigid porous structure suitable for filtration of gases and liquids. Sintered PTFE is recognized as a porous polymer filtration material and can be produced in controlled pore structures for industrial applications.

Available filtration ratings range from 0.1 to 100 μm, with multiple lengths and interface options including M20, M30, 222, 226, flush and platen configurations. The dimensional and connection flexibility makes it suitable for customized industrial filtration solutions and project-based sourcing.

Tipo

Sintered PTFE porous filter cartridge
Materiale

PTFE
Precisione di filtrazione

0.1–100 μm
Porosità

30%–55%
Lunghezza

5–40 in.; customizable up to 1500 mm
Temperature Range

-190°C to 260°C; short-term up to 300°C
Pressure Resistant Strength

0.3–0.8 MPa
Interface Type

M20, M30, 222, 226, flush or platen; customizable
