| Structure |

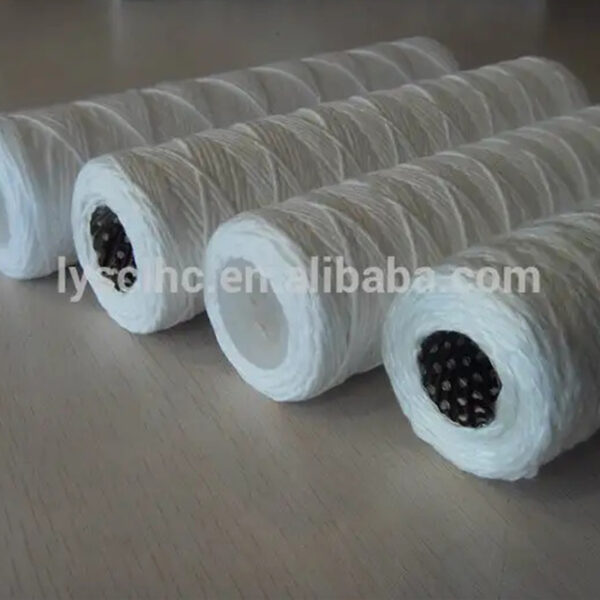

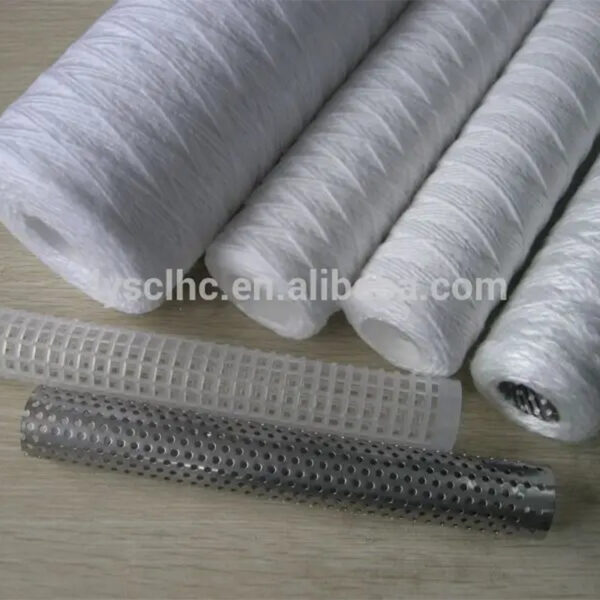

Textile fiber yarn (such as PP, glass fiber) is tightly wrapped around a porous skeleton (polypropylene or stainless steel) to create a honeycomb structure that is sparse on the outside and dense on the inside |
| Filtering accuracy |
Normal range, usually between 1 μm and 100 μm (such as 1, 5, 10, 20, 30, 50, 75, 100 μm) |
| Main materials |
Yarn: Polypropylene (PP), fiberglass, etc; Skeleton: Polypropylene (PP) or Stainless Steel |
| Common sizes |
Length: 10 inches (250mm), 20 inches (500mm), 30 inches (750mm), 40 inches (1000mm); Outer diameter/inner diameter: outer diameter of 60mm/65mm, inner diameter of 28mm/30mm |
| Compressive strength |
The maximum working pressure is generally ≤ 0.5MPa |
| Max operating temperature |
The temperature resistance range varies depending on the material. For example, PP skeleton PP core can withstand up to 70 ℃, stainless steel skeleton degreased cotton core can reach 120 ℃, and glass fiber core can withstand >300 ℃ |
| Example manipulation |
Fluid filtration in multiple industries such as food and beverage, petrochemicals, industrial oils, and water management |
