Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is an industrial filter manufacturer founded in 2009 that designs and manufactures stainless steel filter housings, stainless steel sterile water tanks, filter elements, filter bags, ultra-polymer materials, and sintered filter products. Buyers choose Lvyuan for OEM/ODM support, ISO9001 quality control, and multi-country certifications.
| item | details |
|---|---|
| start port | guangzhou |
| production capacity | 10000 units/month |
| delivery time | within 7 working days |
Our company manufactures the ultra-high molecular polyethylene sintered filter, molecular weight is more than 3 million of sintering particles.Use a mould to use the pressure in the sintering furnace.Sintered filters elements are widely used in chemical, petroleum, metallurgy, air craft, gas, electronic, pharmacy, pneumatic, air regulator components, pressure filter elements, air filters and more fields
|
Product name |

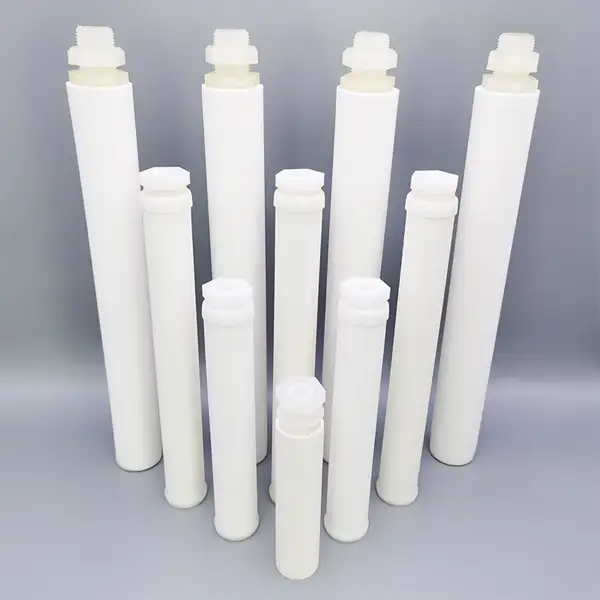

Thread rod plastic porous PE filter 20 30 50 100 microns sintered plastic polyethylene filter for water & fluid & gas flow
|
||||
|
Diameter
|
10mm,20mm,30mm,40mm,50mm,60mm,70mm,80mm,90mm,100mm,110mm,
120mm, 200mm,etc. |
||||
|
Length
|
1″, 2.5″, 5″, 10″ ,20″ ,30″ ,40″, 50″ etc
|
||||
|
Micron rate
|
0.2um,0.3um,0.45um,1um,3um,5um,10um,20um,30um,40um,50um,100um,etc.
|
||||
|
Working temperature
|
PE≤80℃; PTFE≥200℃;PA≤120℃
|
||||
|
Filter connector
|
FLAT,INSERT-TYPE,THREAD TYPE,226,222,215, CUSTOMIZED
|
||||
|
Remark
|
Filter size and microns can be customized. Smaller size or bigger size !
|
||||
A. Pharmaceutical Industry
B. Chemical Industry
C. Chemical fiber & textile industry
D. Light industry and food industry
E. Machinery and Oil industry
F. Waste water treatment
| Product Name | PP Melt Blown sediment filter cartridge |
| Length | 5, 10, 20, 30, 40", 50'', 60'' inch or customized |
| Micron Rate | 1, 3 ,5 ,10 ,20 ,25 ,30 ,50 ,75, 100 micron |
| End Cap | DOE/SOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat, 215+Flat/Fin |
| Inner Diameter | 28~30mm, or OEM |
| Outer Diameter | 60~65mm, Jumbo 110~115mm, or OEM |
| Gasket/O ring material | Silicon/EPDM/NBR/Viton |
| Material | 100% pure Polypropylene or Nylon |
| Surface | Groove, Pressure points, Flat, Embrossing, Orange peel |
| Inner core | None, PP or stainless steel |
| Interface | Flat or insert |
| Max. Operating Pressure Difference: | • 80°C: 1.2kg/cm2 • 60°C: 2.1kg/cm2 • 20°C: 4.2kg/cm2 |
| Max. Operating Temperature | 80°C |
| Recommended Change-out Pressure Difference | 2.1 bar (kg/cm2) |
| Common weight | 100- 120g/10" (It can be customized) |
1. Drinking Water Treatment
2. Industrial water treatment, like electronic, power, plating and oil industry.
3. Pre-filtration of RO/DI system
4. Food and Beverage
5. Sea Water Desalination
6. Chemical, solvent, wine, etc.
