Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is an industrial filter manufacturer founded in 2009 that designs and manufactures stainless steel filter housings, stainless steel sterile water tanks, filter elements, filter bags, ultra-polymer materials, and sintered filter products. Buyers choose Lvyuan for OEM/ODM support, ISO9001 quality control, and multi-country certifications.
| item | details |
|---|---|
| start port | Guangzhou |
| production capacity | 10000 units/Month |
| place of origin | Guangdong, China |
| payment | T/T, paypal |
| moq | 1 pcs |
| delivery time | Within 7 working days |
| certification | ISO 9001 |
| brand | OEM/Lvyuan |
| supply ability | 1000000 pc/month |
|---|---|
| material | stainless steel |
| availability | oem |

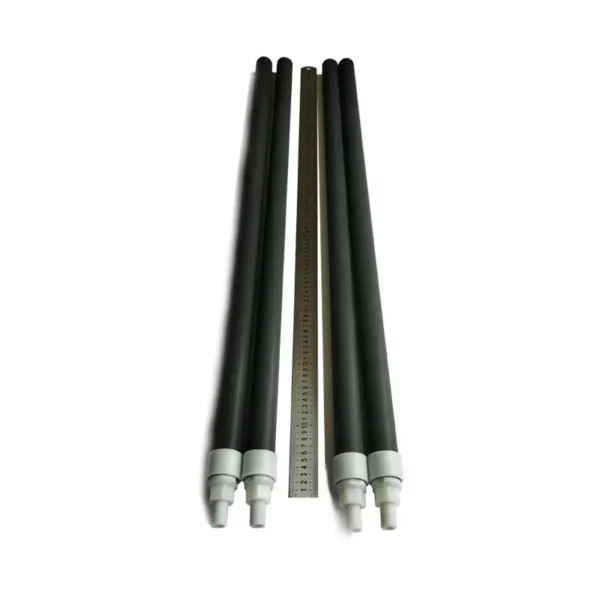

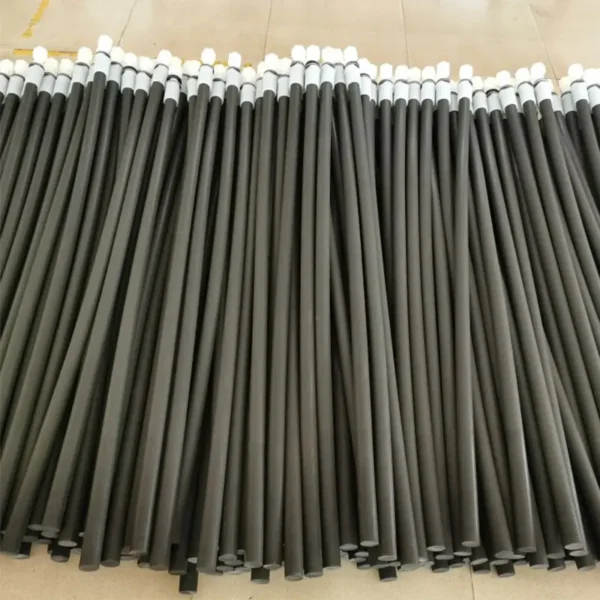

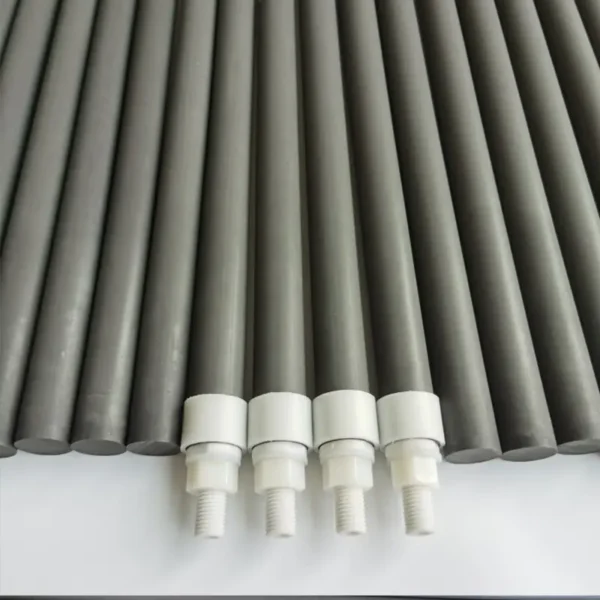

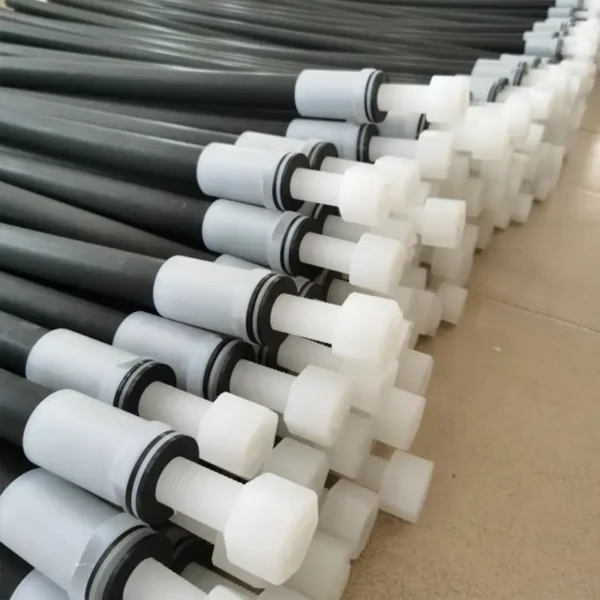

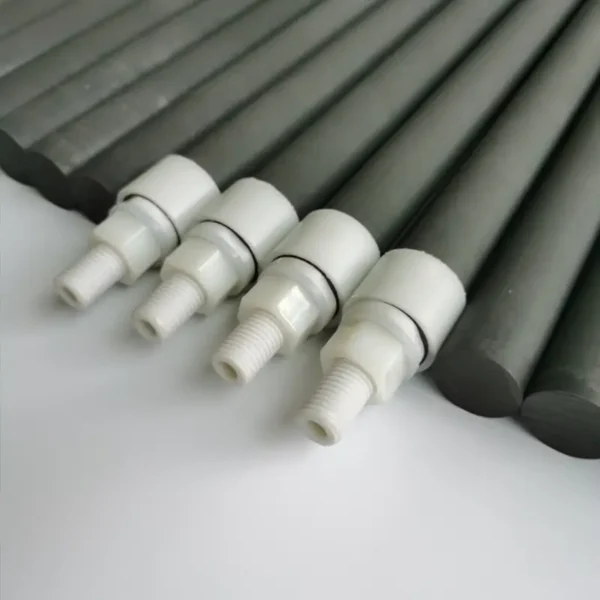

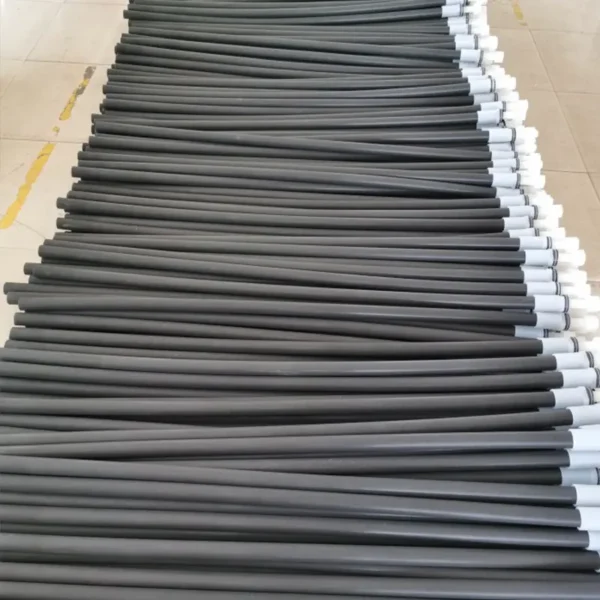

PA Sintered Filter Eement
Raw material: The sintering raw material produced by our company adopts ultra-high pe\ppa\ptfe, which conforms to GMP. Netherlands. Structure: With thick scientific formula and high temperature manufacturing, it has excellent mechanical properties, and the filter media is diversified, and it can also ensure the multi-layer filtering effect of the product when it is easy to recoil. And each device can be tested before.
Grinding Power Product Specifications: Accuracy range: 0.2-140um, Pipe diameter range: 10mm-120mm. Common specifications: Φ38*20*1000 Φ50*20*1000 Φ65*30*1000 Φ70*40*1000 Connector specifications: Φ36 Φ30 Φ25 Φ22 Φ14 Φ12 International general flat pressure type: outer diameter Φ65 inner diameter Φ30 length 10, 20, 30, 40 inches Plug-in type: outer diameter Φ70 inner diameter Φ30 length 10, 20, 30, 40 inches The socket is divided into two types: 226 (O-ring outer diameter 56) 222 (O-ring outer diameter 44) Can also produce filter plates: thickness 3-50mm width 1000mm various lengths 1500mm specification filter plate. If you have special needs, you can request customized production.
| Product Name | PP Melt Blown sediment filter cartridge |
| Length | 5, 10, 20, 30, 40", 50'', 60'' inch or customized |
| Micron Rate | 1, 3 ,5 ,10 ,20 ,25 ,30 ,50 ,75, 100 micron |
| End Cap | DOE/SOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat, 215+Flat/Fin |
| Inner Diameter | 28~30mm, or OEM |
| Outer Diameter | 60~65mm, Jumbo 110~115mm, or OEM |
| Gasket/O ring material | Silicon/EPDM/NBR/Viton |
| Material | 100% pure Polypropylene or Nylon |
| Surface | Groove, Pressure points, Flat, Embrossing, Orange peel |
| Inner core | None, PP or stainless steel |
| Interface | Flat or insert |
| Max. Operating Pressure Difference: | • 80°C: 1.2kg/cm2 • 60°C: 2.1kg/cm2 • 20°C: 4.2kg/cm2 |
| Max. Operating Temperature | 80°C |
| Recommended Change-out Pressure Difference | 2.1 bar (kg/cm2) |
| Common weight | 100- 120g/10" (It can be customized) |
1. Drinking Water Treatment
2. Industrial water treatment, like electronic, power, plating and oil industry.
3. Pre-filtration of RO/DI system
4. Food and Beverage
5. Sea Water Desalination
6. Chemical, solvent, wine, etc.
