Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is an industrial filter manufacturer founded in 2009 that designs and manufactures stainless steel filter housings, stainless steel sterile water tanks, filter elements, filter bags, ultra-polymer materials, and sintered filter products. Buyers choose Lvyuan for OEM/ODM support, ISO9001 quality control, and multi-country certifications.
| item | details |
|---|---|
| start port | guangzhou |
| production capacity | 10000 units/month |
| place of origin | guangdong, china |
| payment | t/t, western union, alibaba trade assurance |
| moq | 1 pcs |
| model | ly-hfpl-7 |
| delivery time | within 7 working days |
| certification | iso 9001 |
| brand | oem/lvyuan |

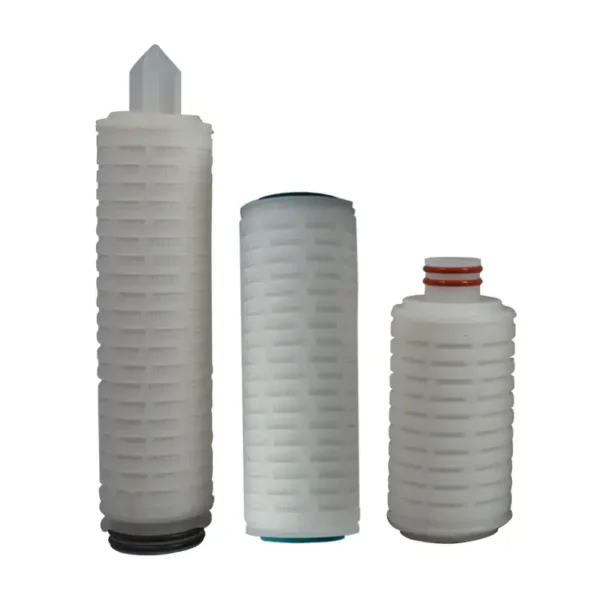

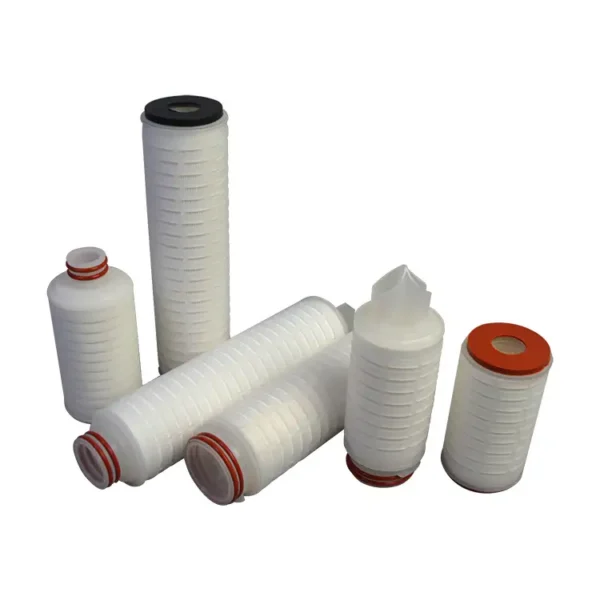

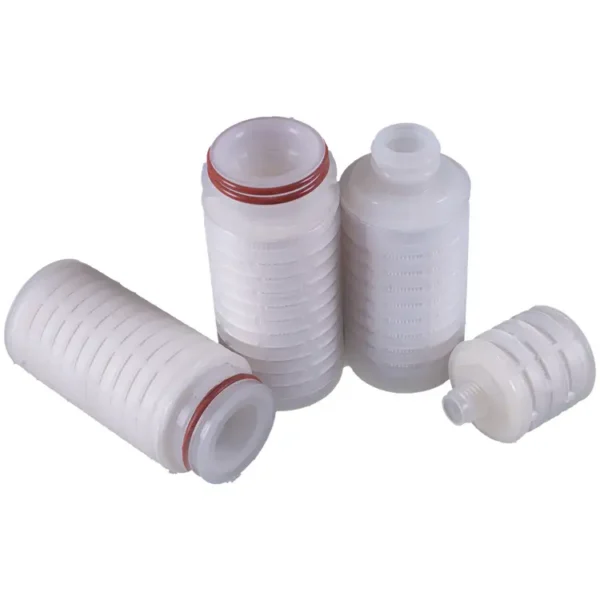

Hydrophilic Porous Membrane Filter PTFE Water Filter
The Polypropylene pleated filter cartridge or PP Filter Cartridge is constructed with a high surface area polypropylene media(PP microporous membrane) for low initial pressure drop, high dirt holding capacity.It is an efficient membrane prefilter and can act as a final polishing filters for numerous fluid refining processes. The filter cartridges are constructed with heavy duty molded cage which enables it to withstand high pressure drop.
| Applicable Industries | Hotels, Building Material Shops, Home Use, Retail, Construction works |
| Size | 10 inch |
| Product name | Pleated Water Filter Cartridge |
| Type | Conditioner (Water Purifier) |
| Material | PP;PES;PVDF |
| Micron rate | 0.2-100micron |
| Application | Household Water Treatment |
Features
1 Micron ratings from 1 to 100 μm — broad application range
2 Polypropylene construction — inert to many process fluids(High chemical compatibility)
3 Various gasket/O-ring materials for you to choose to fuifil your different needs
4 Heavy-duty molded cage — high structural strength
5 Thermally welded construction.
6 PP microprous membrane provides high filtration performance and long service life
Our team
We are available with 24hours, contact us [email protected]
| Product Name | PP Melt Blown sediment filter cartridge |
| Length | 5, 10, 20, 30, 40", 50'', 60'' inch or customized |
| Micron Rate | 1, 3 ,5 ,10 ,20 ,25 ,30 ,50 ,75, 100 micron |
| End Cap | DOE/SOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat, 215+Flat/Fin |
| Inner Diameter | 28~30mm, or OEM |
| Outer Diameter | 60~65mm, Jumbo 110~115mm, or OEM |
| Gasket/O ring material | Silicon/EPDM/NBR/Viton |
| Material | 100% pure Polypropylene or Nylon |
| Surface | Groove, Pressure points, Flat, Embrossing, Orange peel |
| Inner core | None, PP or stainless steel |
| Interface | Flat or insert |
| Max. Operating Pressure Difference: | • 80°C: 1.2kg/cm2 • 60°C: 2.1kg/cm2 • 20°C: 4.2kg/cm2 |
| Max. Operating Temperature | 80°C |
| Recommended Change-out Pressure Difference | 2.1 bar (kg/cm2) |
| Common weight | 100- 120g/10" (It can be customized) |
1. Drinking Water Treatment
2. Industrial water treatment, like electronic, power, plating and oil industry.
3. Pre-filtration of RO/DI system
4. Food and Beverage
5. Sea Water Desalination
6. Chemical, solvent, wine, etc.
