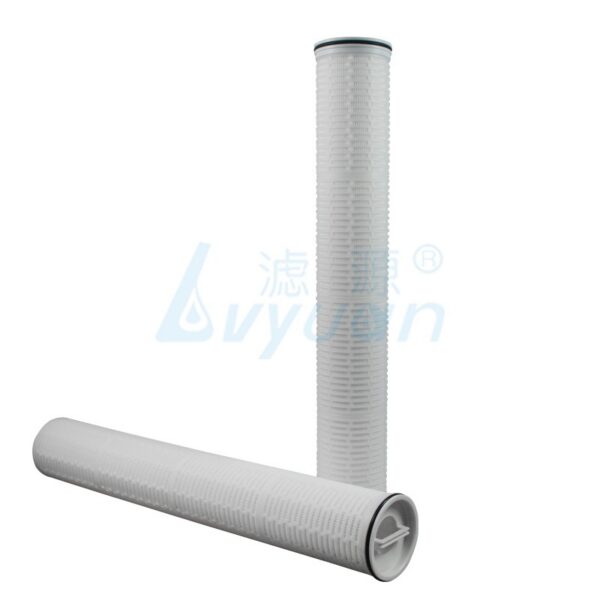

HF Series 510 Micron High flow filter Pleated Sediment Cartridge For Water Filter treatment

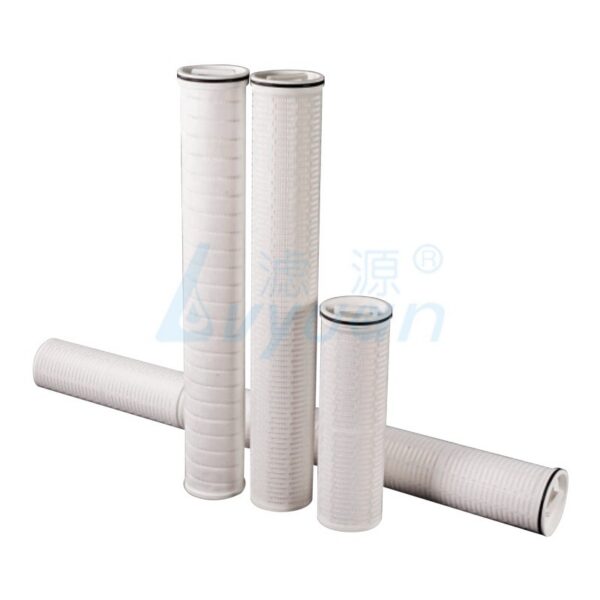

HF Series 510 Micron High flow filter Pleated Sediment Cartridge For Water Filter treatment

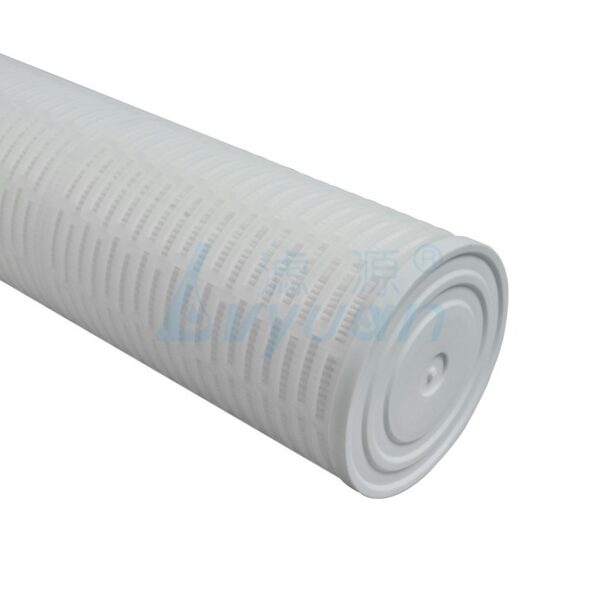

HF Series 510 Micron High flow filter Pleated Sediment Cartridge For Water Filter treatment

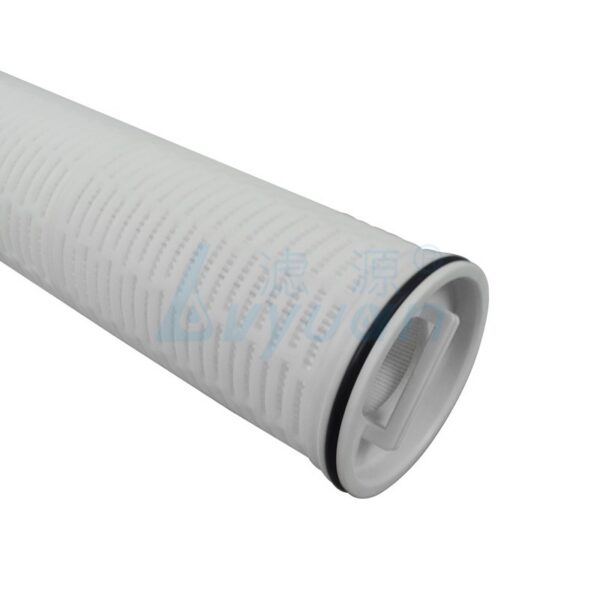

HF Series 510 Micron High flow filter Pleated Sediment Cartridge For Water Filter treatment
  1. HF Series 510 Micron High flow filter Pleated Sediment Cartridge For Water Filter treatment
  2. HF Series 510 Micron High flow filter Pleated Sediment Cartridge For Water Filter treatment
  3. HF Series 510 Micron High flow filter Pleated Sediment Cartridge For Water Filter treatment
  4. HF Series 510 Micron High flow filter Pleated Sediment Cartridge For Water Filter treatment

HF Series 5/10 Micron High flow filter Pleated Sediment Cartridge For Water Filter treatment

Start Port: Guangzhou
Production Capacity: 10000 units/Month
Place of Origin: Guangdong, China
Payment: L/C, T/T, Western Union, Alibaba Trade Assurance, paypal
MOQ: 1 pcs
Model: LY-HFPL
Delivery Time: Within 7 working days
Certification: SGS, ISO 9001
Brand: OEM/Lvyuan
Inquiry
Condividi il tuo amore
Categorie: , Tag: , , , , ,
HF Series 5/10 Micron High flow filter Pleated Sediment Cartridge For Water Filter treatment 5
The LY-HFPL filter cartridge is a new product developed by Lvyuan Water Purification Equipment Co.,Ltd. In Guangzhou, China. It has a 6 inch/152mm large diameters. It is made of 100% polypropylene media. The hard strong cage enables the high water flow filters to undertake a larger operation pressure during filtration process. The large diameter with big filter area insures to reduce the number of filter cartridges and the dimension of housing required. The long service life and high flow rate result in low investment and less manpower in many applications. This kind of LY-HFPL product has various applications on water treatment.

  Product Feature

  • ◪    All contaminants can be removed within the cartridges because of the flow direction.
  • ◪   Up to 110m³/h flow rate per one filter cartridge for water filtration.
  • ◪   Max. 50% reduction of the filter system.
  • ◪   Multi membrane layers for large dirt holding in the high flow filter elements.
  • ◪   Thermally bonded construction for stronger pressure resistance.
  • ◪   Handle design quick installation, safety and reduce the cost.

Product Parameter

Product Name Repalcement High flow water filter cartridge 60 inch (LY-HFPL)
Filter media PP/Polypropylene membrane
Support PP/Polypropylene
Core/End cap PP/Polypropylene
Seal material Silicone/EPDM/VITON/PTFE/NBR
Outer diameter 6”(152mm)
Inner diameter 3.5 inch(89mm)
Length 20”, 40”, 60”, Customized
Max.operating temperature 82℃
Micron rating(μm) 1, 4, 5, 10, 15, 20, 40, 70, 100

Product Details

HF Series 5/10 Micron High flow filter Pleated Sediment Cartridge For Water Filter treatment 6
part.1

★ Graded filtration pore sizes in one high flow element.

★ Easier and more convinient installation and replaced.

★ Pleated with optimized membrane structure, better filtration and efficiency.

★ U-shaped sealing groove ensures high filtration efficiency.

★ From filter inside to outside filtration, all impurities are trapped inside the filter.

Product Applications

HF Series 5/10 Micron High flow filter Pleated Sediment Cartridge For Water Filter treatment 7

Municipal tap water, Prefiltration of RO, Pre treatment of sea water desalination

HF Series 5/10 Micron High flow filter Pleated Sediment Cartridge For Water Filter treatment 8
Condensate water filtration, hot water recovery in power generation
HF Series 5/10 Micron High flow filter Pleated Sediment Cartridge For Water Filter treatment 9
API, solvents, and water filtration in BioPharm market
HF Series 5/10 Micron High flow filter Pleated Sediment Cartridge For Water Filter treatment 10
The filtration of bottled water, high fructose, edible oil, soft drinks and milk
HF Series 5/10 Micron High flow filter Pleated Sediment Cartridge For Water Filter treatment 11
Paints and coatings, Petrochemical, refineries, CD/DVD, magnetic media, Petrochemical, Refineries
HF Series 5/10 Micron High flow filter Pleated Sediment Cartridge For Water Filter treatment 12
Microelectronics, film, fiber and resin

Recensioni

Ancora non ci sono recensioni.

Recensisci per primo “HF Series 5/10 Micron High flow filter Pleated Sediment Cartridge For Water Filter treatment”

Il tuo indirizzo email non sarà pubblicato. I campi obbligatori sono contrassegnati *

Product Description

Sediment Filter
Replacement P/A/L/L Polypropylene depth filter cartridge price for oil paint hydraulic water filtration

Polypropylene melt blown filter cartridge or PP spun water filter, PP filter, PP filter cartridge is the most widely used filtration consumable products in domestic and industrial water treatment systems. PP melt blown filter cartridges (PPF) are made of 100% pure polypropylene fiber, providing broad wide chemical compatibility.

Melt Blown sediment filter cartridge has strong pollutants holding capacity. It can remove suspended substances, particulate and rust effectively, providing efficient filtration and long service life. It works an important role in the pre-filtration water treatment process.

We can customs-made PP or Nylon melt blown filter cartridges in all dimension (Length, Outer diameter, inner diameter) with 1 layer to more than 3 layers and multi-layers. Special PP/Nylon melt blown cartridge filters with varied specifications like groove, orange peel, pressure point, flat and embossing surface finish or equipped with different DOE or SOE end caps are also available.

All dimension can be custom-made. In order to work out the prices for you, please kindly advise your specification requirement and quantity.
Sediment Filter
Groove surface PP sediment filter cartridge
Flat surface PP sediment filter cartridge
Flat surface PP sediment filter cartridge
Orange peel surface PP filter cartridge
Orange peel surface PP filter cartridge
Embossing surface PP sediment cartridg
Embossing surface PP sediment cartridg
Pressure point surface PP sediment cartridge
Pressure point surface PP sediment cartridge
FlatFin end cap PP filter
FlatFin end cap PP filter
PP shell Polypropylene melt blown filter cartridge
PP shell Polypropylene melt blown filter cartridge
OEM Various size PP Nylon melt blown filter cartridge for water air filtration
OEM Various size PP/Nylon melt blown filter cartridge for water/air filtration
Big High Flow PP melt blown filter cartridge with OEM length and OEM diameters
Big High Flow PP melt blown filter cartridge with OEM length and OEM diameters

Specification

Product NamePP Melt Blown sediment filter cartridge
Length5, 10, 20, 30, 40", 50'', 60'' inch or customized
Micron Rate1, 3 ,5 ,10 ,20 ,25 ,30 ,50 ,75, 100 micron
End CapDOE/SOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat, 215+Flat/Fin
Inner Diameter28~30mm, or OEM
Outer Diameter60~65mm, Jumbo 110~115mm, or OEM
Gasket/O ring materialSilicon/EPDM/NBR/Viton
Material100% pure Polypropylene or Nylon
SurfaceGroove, Pressure points, Flat, Embrossing, Orange peel
Inner coreNone, PP or stainless steel
InterfaceFlat or insert
Max. Operating Pressure Difference:• 80°C: 1.2kg/cm2
• 60°C: 2.1kg/cm2
• 20°C: 4.2kg/cm2
Max. Operating Temperature80°C
Recommended Change-out Pressure Difference2.1 bar (kg/cm2)
Common weight100- 120g/10" (It can be customized)

Application

PP Filter Cartridge

1. Drinking Water Treatment
2. Industrial water treatment, like electronic, power, plating and oil industry.
3. Pre-filtration of RO/DI system
4. Food and Beverage
5. Sea Water Desalination
6. Chemical, solvent, wine, etc.
